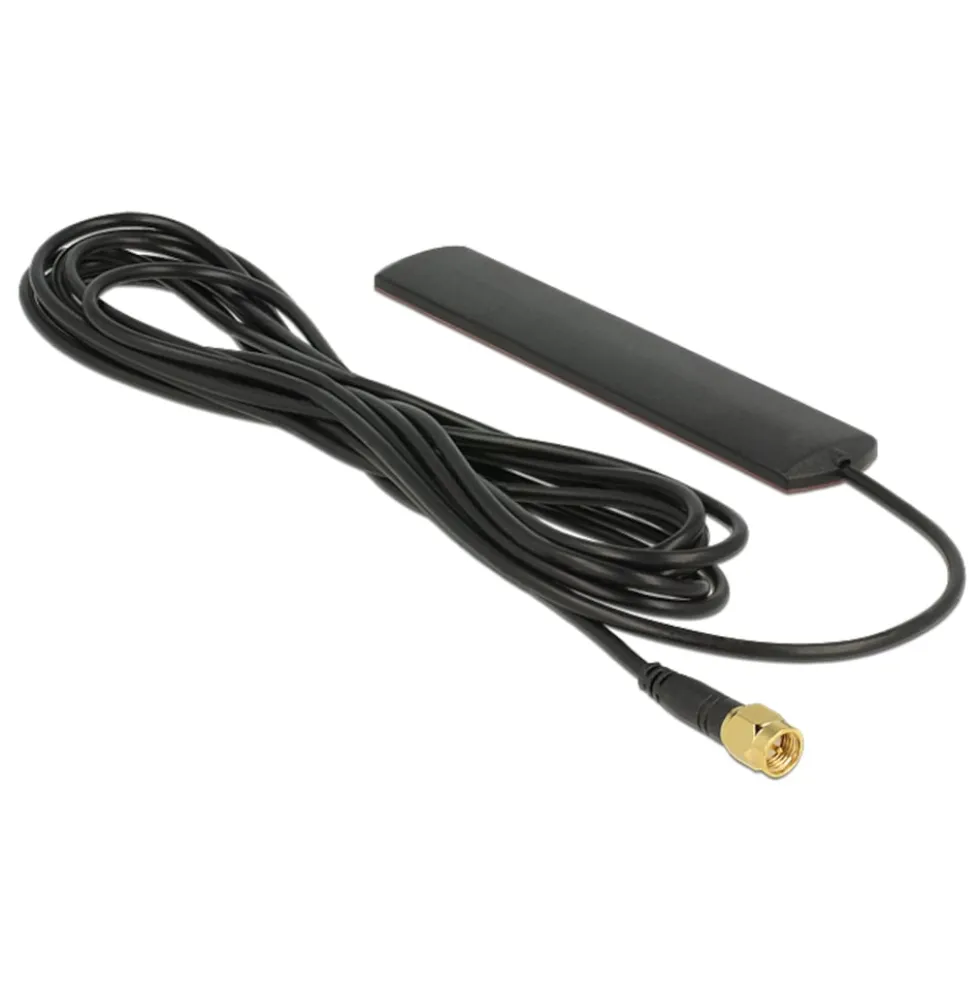

4G-antenne 3 dBi

This LTE antenna can be installed indoors and can be usedfor reception of different LTE bands. It is completely Bluetooth, UMTS, GSM, WLAN 2.4 GHz, Z-Wave and ZigBee compatible.

Specification

• Connector: SMA plug

• LTE Band 1-10/12-20/23/25-30/33-41/43/44

• Frequency range: 690-960 / 1710-2700 Mhz

• UMTS/GSM/Bluetooth/WLAN 2,4GHz/ZigBee/Z-Wave/DECT/SRD

• Gain: 3 dBi

• Impedance: 50 Ohm

• VSWR: 2.0:1 max.

• Cable category: coaxial cable

• Cable typ: RG-174

• Cable colour: black

• Cable length: ca. 3 m

• Operating temperature: -10°C ~ 55°C

• Body: ABS UV resistant

• Dimensions (LxWxH): ca. 115 x 22 x 5 mm

System requirements

• Device with free SMA connector

Package content

• LTE antenna

Package

• Poly bag
